Fast Ac 220v Single Phase 1500kg High Speed Sliding Door Operators Industrial Use
Features:
Sliding gate operators up to 1500kg in weight;
Last many years by Strong robustness and reliability with a delightful original design;
Safety is ensured with the help of mechanical or electronic clutches by our delightful original design;
Built-in control board with quick installation easily;
Fast,precise and stable programming;
| Fast heavy duty sliding gate operators G15F Industrial Use |
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 550W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 24m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 17 kgs(- 37 Ibs) |
| Maximum Gate Mass | 1500 kgs |
Compare to other gate openers, the ultra-fast sliding gate motors are much more faster, it could move up to 24m/min. This very good choice for properties that are located on busy roads or need added more safe to fast close the door. And this fast motor with 230V also is suitable for heavy duty sliding gate.

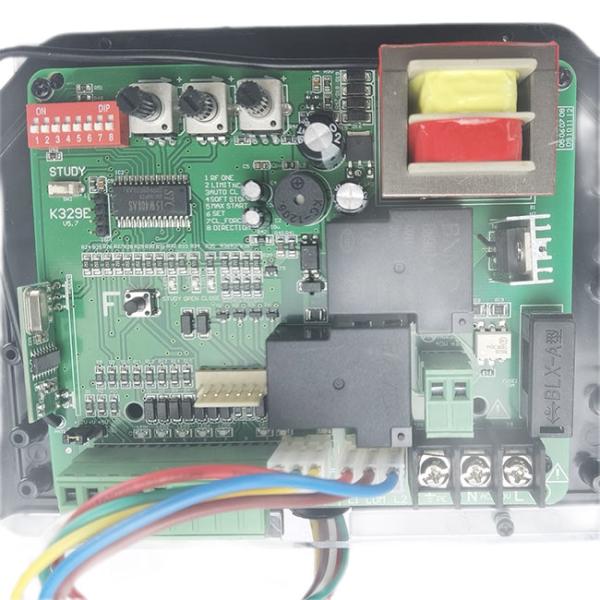

PCB control board for sliding gate openers
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 1500kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
